Drilling Rig Product Range

The complete Julong range — 14 models across mechanical top drive, full hydraulic core, dual head, RC exploration and pneumatic water well rigs.

All Mechanical Top Drive Full Hydraulic Core Dual Power Head RC Exploration Pneumatic Water Well

JDL-280 Mechanical Top Drive Drilling Rig

Mechanical Top Drive Drilling Rig

Water & air drilling in one machine · National invention patent

Drilling depth280 m

Torque9,800 N·m

Mechanical Top Drive Drilling Rig

Long-stroke double-speed feed · Dual pump supply

Drilling depth350 m

Torque10,500 N·m

Mechanical Top Drive Drilling Rig

500 m water well · 900 m wireline coring · 75–90° angle drilling

Drilling depth500 m

Torque16,500 N·m

1000 Series Full Hydraulic Core Drilling Rig

45–90° angle drilling · 2,600 N·m

Drilling depth1200 m

Torque2,600 N·m

Full Hydraulic Core Drilling Rig

4.5 t compact crawler · 45–90° drilling

Drilling depth650 m

Torque1,400 N·m

Full Hydraulic Core Drilling Rig

3 m rods · cylinder-chain double-speed feed · 2,600 N·m

Drilling depth1200 m

Torque2,600 N·m / 1400 rpm

Full Hydraulic Core Drilling Rig

Direct-push feed · 3 m rods · 2,600 N·m

Drilling depth1200 m

Torque2,600 N·m / 1400 rpm

Full Hydraulic Core Drilling Rig

Floating spindle · 3,600 N·m · 1,300 m NTW

Drilling depth1500 m

Torque3,600 N·m / 1400 rpm

Full Hydraulic Core Drilling Rig

4,000 N·m · 1,600 m NTW · floating spindle

Drilling depth1800 m

Torque4,000 N·m / 1400 rpm

Full Hydraulic Core Drilling Rig

5,000 N·m · 2,000 m NTW · 600 kN pull-up

Drilling depth2200 m

Torque5,000 N·m / 1400 rpm

Dual Power Head Drilling Rig

Mechanical top drive + full hydraulic · instant switch

Drilling depth1200 m

Torque机械 8,500 N·m ／全液压 2,200 N·m

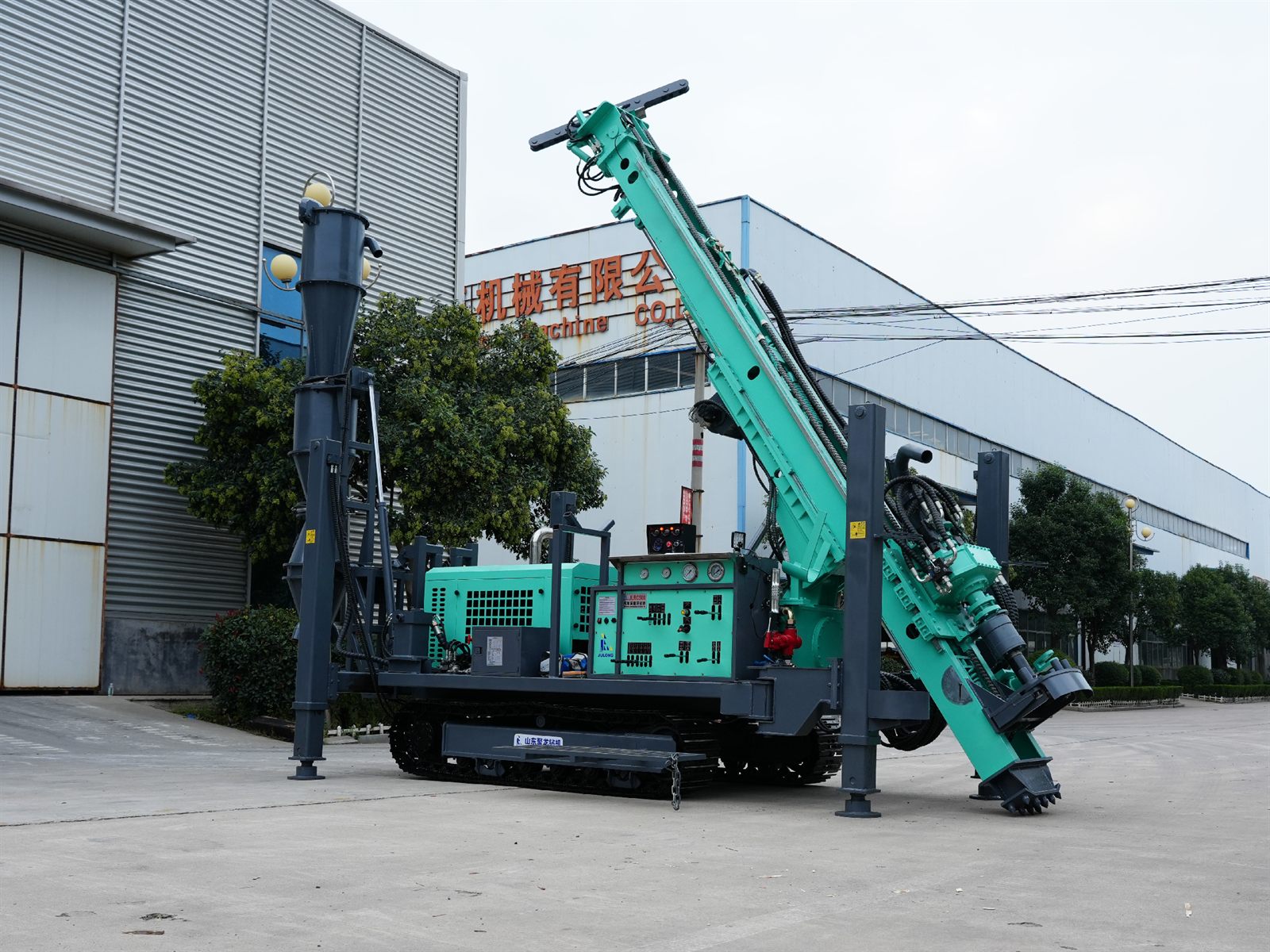

JLRC500 Air-lift RC Exploration Drilling Rig

Air-lift RC Exploration Drilling Rig

Dual-wall rods · cyclone sampling · 500 m

Drilling depth500 m

Torque8,000–12,000 N·m

Air-lift RC Rig (Automatic Rod Handling)

Automatic rod change · air-conditioned cab

Drilling depth500 m

Torque8,000–12,000 N·m

Pneumatic Water Well Drilling Rig

12–40 m/h penetration · casing-while-drilling · 600 m

Drilling depth600 m

Torque8,000–12,000 N·m

Factory & Shipment

From our workshop to your port

Our own production base — assembly, test run and container loading, photographed on site. Bulk orders delivered on schedule, shipped to 80+ countries.

Julong drilling rig factory

Julong drilling rig factory

Julong drilling rig factory

Julong drilling rig factory

Julong drilling rig factory

Julong drilling rig factory

Julong drilling rig factory

Julong drilling rig factory

Julong drilling rig factory

Julong drilling rig factory

Julong drilling rig factory

Julong drilling rig factory

Not sure which rig fits your project?

Tell us your drilling depth, geology and application — our engineers reply within 24 hours with a selection plan and factory price.

Send Inquiry WhatsApp
